    Cast iron material square mouth discharge dust removal rotary valve

    Ask Lasest Price
    Brand Name : TECLION
    Model Number : RDWS250
    Certification : CE,EAC
    Price : Get the Best Price
    Payment Terms : T/T
    Supply Ability : Usually every ten sets for 40 days
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    Cast iron material square mouth discharge dust removal rotary valve

    Cast iron material square mouth discharge dust removal rotary valve


    Product Description:

    The square mouth rotary valve is an important equipment in gravity feeding and ventilation dust removal systems. The main function is to continuously discharge the materials from the unloader or dust removal equipment, while ensuring that the pressure inside the equipment is not exposed to atmospheric pressure. Due to its working characteristics, it is widely used in many fields such as cement and dust removal. The material is usually cast iron. According to customer needs, valve bodies can be treated with spray coating of PTFE, tungsten carbide, and other materials.


    Product Features:

    1)Square design for inlet and outlet

    2)Precision cast shell

    3)High load design

    4)Optional spray of Teflon

    5)Optional tungsten carbide spray

    6)Can be used in explosion-proof areas


    Product Parameters:

    NoItemNote
    1Valve typeRotary valve
    2Size300x300mm
    3Height360 mm
    4TemperatureNo more than 250 degrees
    5FlangePN10
    6Rotor volume10 Litre
    7ConfigurationWorm gear reducer or cycloidal reducer
    8Weight100kg (Excluding driver)

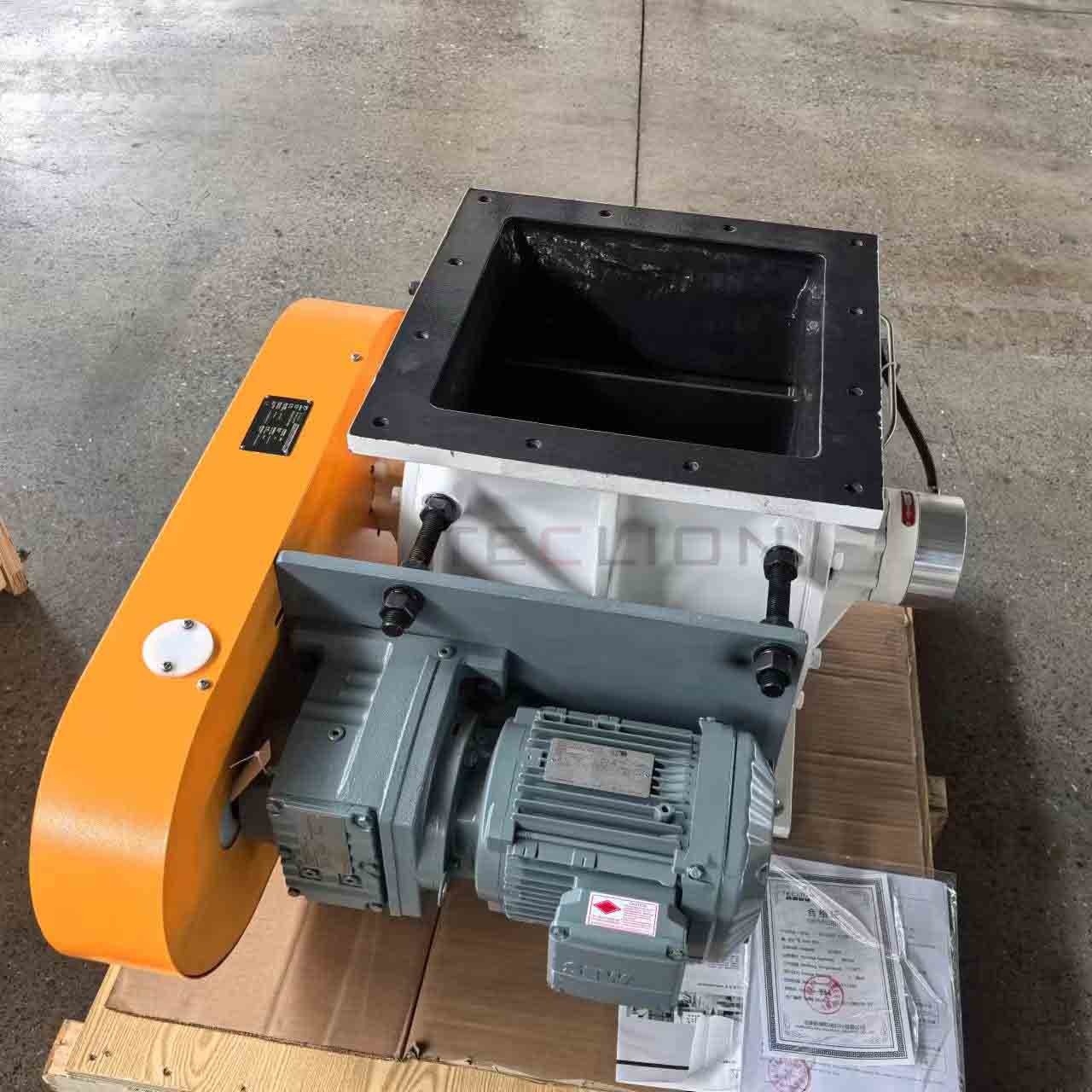

    Product Pictures:

    Cast iron material square mouth discharge dust removal rotary valveCast iron material square mouth discharge dust removal rotary valveCast iron material square mouth discharge dust removal rotary valveCast iron material square mouth discharge dust removal rotary valve
