    45 Degree Ceramic Sprayed Single Channel Ball directional valve for Dense Phase Conveying

    Ask Lasest Price
    Brand Name : TECLION
    Model Number : DBK100R
    Certification : CC CE
    Price : Get the Best Price
    Payment Terms : T/T
    Supply Ability : Usually every one sets for 35- 40 days
    Delivery Time : 45 working days
    • Product Details
    • Company Profile

    45 Degree Ceramic Sprayed Single Channel Ball directional valve for Dense Phase Conveying

    45 Degree Ceramic Sprayed Single Channel Ball directional valve for Dense Phase Conveying


    Product Description:

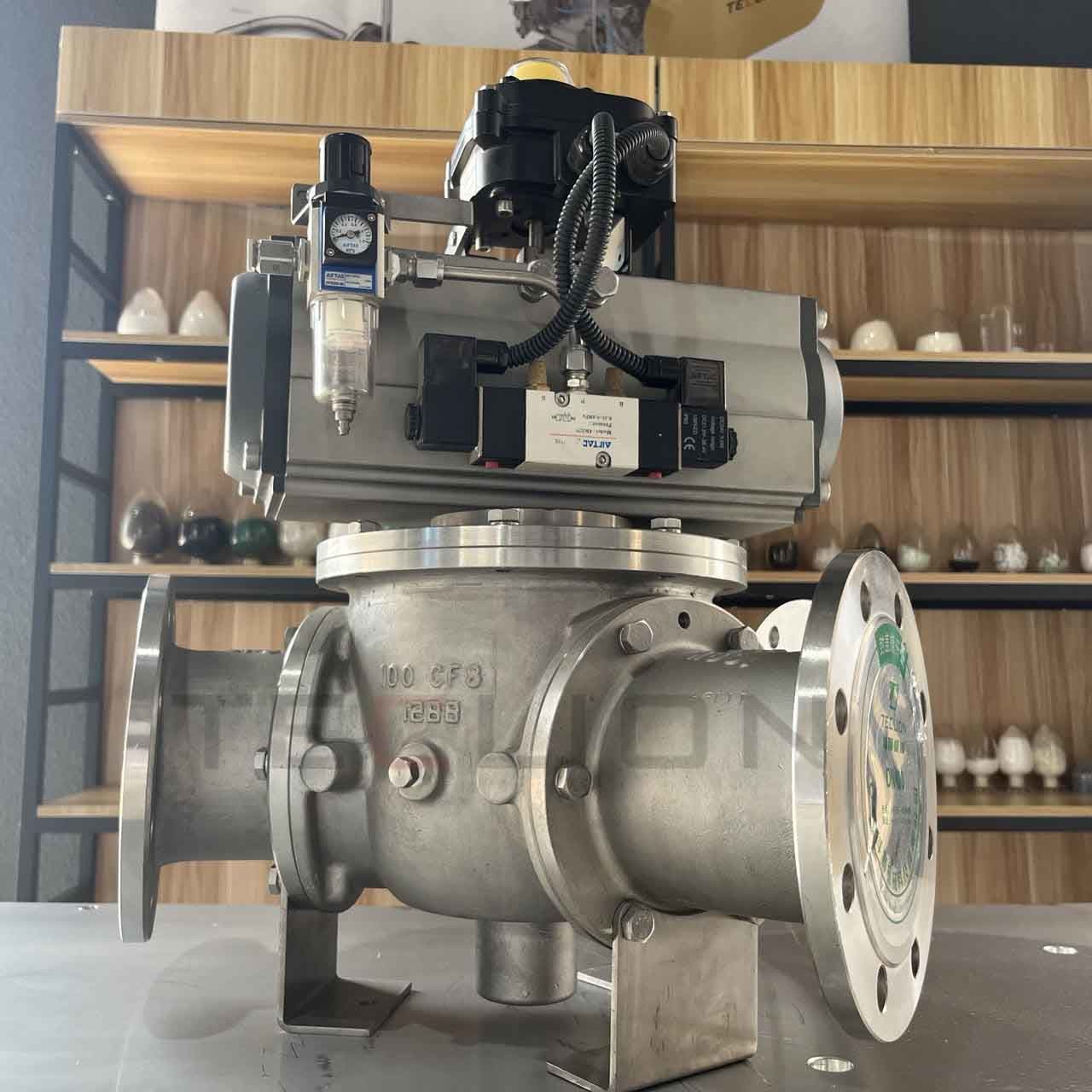

    The ball type series directional valve has better sealing effect and is very suitable for dense phase conveying occasions. The diameter of the directional valve in the picture is DN100, and the contact area between the inner cavity and the material is sprayed with ceramic. Ceramic coatings have characteristics such as high temperature resistance, corrosion resistance, high hardness, and wear resistance.


    Product Features:

    1) Smooth channel without undulations or dead corners

    2) Angle 45 °, three port seal

    3) Dense Phase Convey

    4) Clear flow indication

    5) Drive can be left placed

    6) Hard sealing structure


    Product Parameters:

    NoItemNote
    1Valve typeSolenoid-actuated Poppet Valve
    2SizeDN50-DN300
    3pressure6.0barg
    4Temperature usage ℃-20-120℃
    5MaterialStainless steel carbon steel
    6Angle45° 90° 60°
    7Configurationsingle channel
    8Electrical ComponentsOptional

    Product Pictures:

    45 Degree Ceramic Sprayed Single Channel Ball directional valve for Dense Phase Conveying45 Degree Ceramic Sprayed Single Channel Ball directional valve for Dense Phase Conveying45 Degree Ceramic Sprayed Single Channel Ball directional valve for Dense Phase Conveying45 Degree Ceramic Sprayed Single Channel Ball directional valve for Dense Phase Conveying
