    Swing flap plate gravity feeding stainless steel diverter valve

    Ask Lasest Price
    Brand Name : TECLION
    Model Number : DFY200
    Certification : CE
    Price : Get the Best Price
    Payment Terms : T/T
    Supply Ability : Usually every ten sets for 40 days
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    Swing flap plate gravity feeding stainless steel diverter valve

    Swing flap plate gravity feeding stainless steel diverter valve


    Product Description:

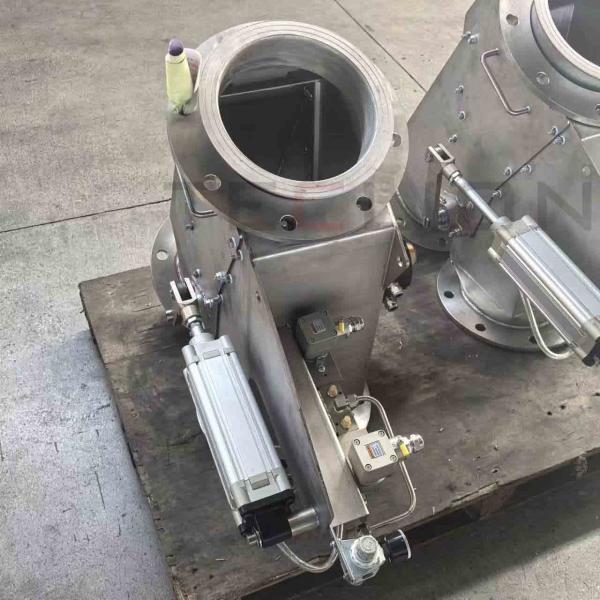

    A diverter valve is used for conveying powder or granular materials under gravity dropping conditions. The valve adopts a swinging plate structure design, which can switch with materials and be maintained online. The angle of the discharge port can be selected from 60 degrees, 45 degrees, or 30 degrees. The image is at 30 degrees. Standard flange connection, or quick release clamp connection can be used. Multiple sealing strips are used to seal the inner cavity of the valve body, providing excellent sealing performance.


    Product Features:

    1) Gravity feeding

    2) Flap type

    3) Pneumatic driving or manual

    4) 304ss Material

    5) Flange connection or clamp

    6) Allow with material operation


    Product Parameters:

    NoItemNote
    1Valve typeDiverter valve
    2SizeDN200
    3Work conditionGravity feeding
    4Temperature usage ℃-20~120
    5MaterialMild steel and 304SS
    6Angle30,45,60 degrees
    7ConfigurationSpray tuns
    8Electrical ComponentsOpional

    Product Pictures:

    Swing flap plate gravity feeding stainless steel diverter valveSwing flap plate gravity feeding stainless steel diverter valveSwing flap plate gravity feeding stainless steel diverter valveSwing flap plate gravity feeding stainless steel diverter valve
