    Powder Pneumatic Conveying Diverter Valves Casting Stainless Steel

    Ask Lasest Price
    Brand Name : TECLION
    Model Number : DK80
    Certification : CE
    Price : Get the Best Price
    Payment Terms : T/T
    Supply Ability : Usually every ten sets for 30 days
    Delivery Time : 20 working days
    • Product Details
    • Company Profile

    Powder Pneumatic Conveying Diverter Valves Casting Stainless Steel

    Casting Stainless Steel Powder Pneumatic Conveying Diverter Valve


    Product Description:

    Our plunger type diverter valves are usually made of stainless steel or carbon steel castings, with exquisite and beautiful valve body structure and reliable sealing design, which has always been praised by users and peers. This diverter valve is suitable for pneumatic conveying up to 1.5 barg and can be used at any position on dilute phase conveying pipelines. Mostly used in the plastic pellet, food chemical, and battery industries. Even in the European region, we have helped customers replace internationally renowned brand products such as Coperion and Zeppelin multiple times, receiving unanimous praise from customers.


    Features:

    1) Stainless steel cast valve body

    2) Reliable valve body sealing design

    3) Asymmetric 45 degree valve body channel

    4) The flow direction of the channel is concise and clear

    5) Consideration of pressure loss in channel structure design

    6) Can replace Coperion diverter valve


    Product parameters:

    No.ItemParameters
    1Pressureless than 1.5barg
    2Suitable MediaPowder or Granular
    3Valve AngleAsymmetric design with 45°
    4DrivingPneumatic Cylinder
    5Valve CorePlunger type

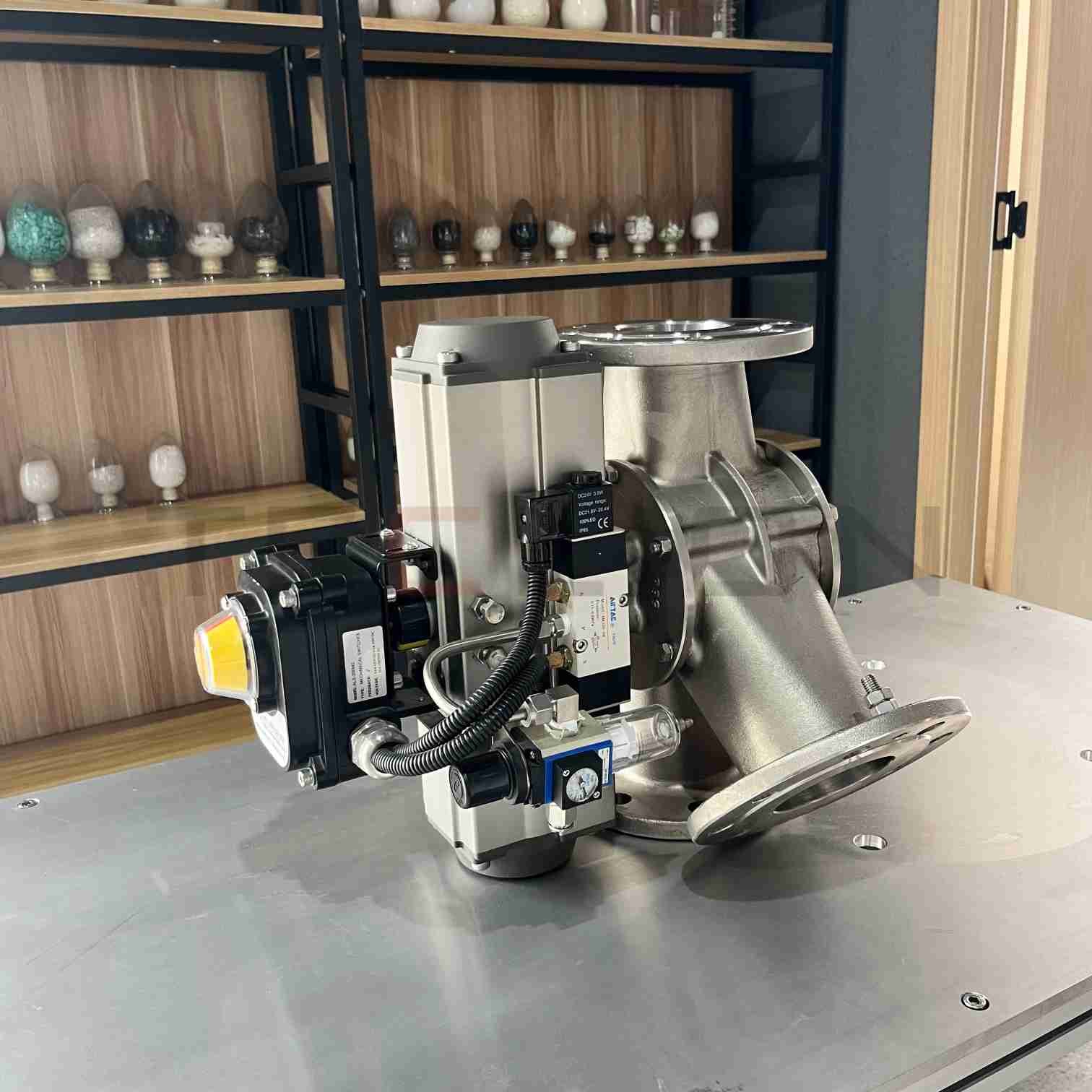

    Product Pictures:

    Powder Pneumatic Conveying Diverter Valves Casting Stainless SteelPowder Pneumatic Conveying Diverter Valves Casting Stainless SteelPowder Pneumatic Conveying Diverter Valves Casting Stainless Steel
