    Y Shaped Three Way Diverter Valve Gate For Material Handling System

    Ask Lasest Price
    Brand Name : TECLION
    Model Number : DK80
    Certification : CE
    Price : Get the Best Price
    Payment Terms : T/T
    Supply Ability : Usually every 20 sets for 30 days
    Delivery Time : 20 working days
    • Product Details
    • Company Profile

    Y Shaped Three Way Diverter Valve Gate For Material Handling System

    Three way Y-shaped diverter valve for conveying powder and particles



    Product Description:

    Our three-way directional valve is specifically designed for conveying solid materials such as powders or particles. This product adopts a plunger structure design and is suitable for gravity feeding and pneumatic conveying up to 1.5 barg. The internal channel of the valve body is designed to be smooth and free of undulations, ensuring smooth material conveying. Special configurations can be made according to customer requirements, such as configuring a heating jacket in low-temperature environments and optimizing the valve body structure in high-pressure dense phase conveying environments, with a pressure resistance of up to 3.5 bar.



    Features:

    1) Used for any position of dilute phase transportation pipelines

    2) The valve core form is plunger type

    3) Clear indication of material flow direction

    4) Suitable for explosion-proof areas

    5) Flange grade PN10, ANSI 150lbs



    Product parameters:

    Serial No.ItemParameter
    1Product NameThree way diverter valve
    2Pressure1.5barg
    3Valve height350
    5Valve weight35kg
    6Valve drivePneumatic Cylinder

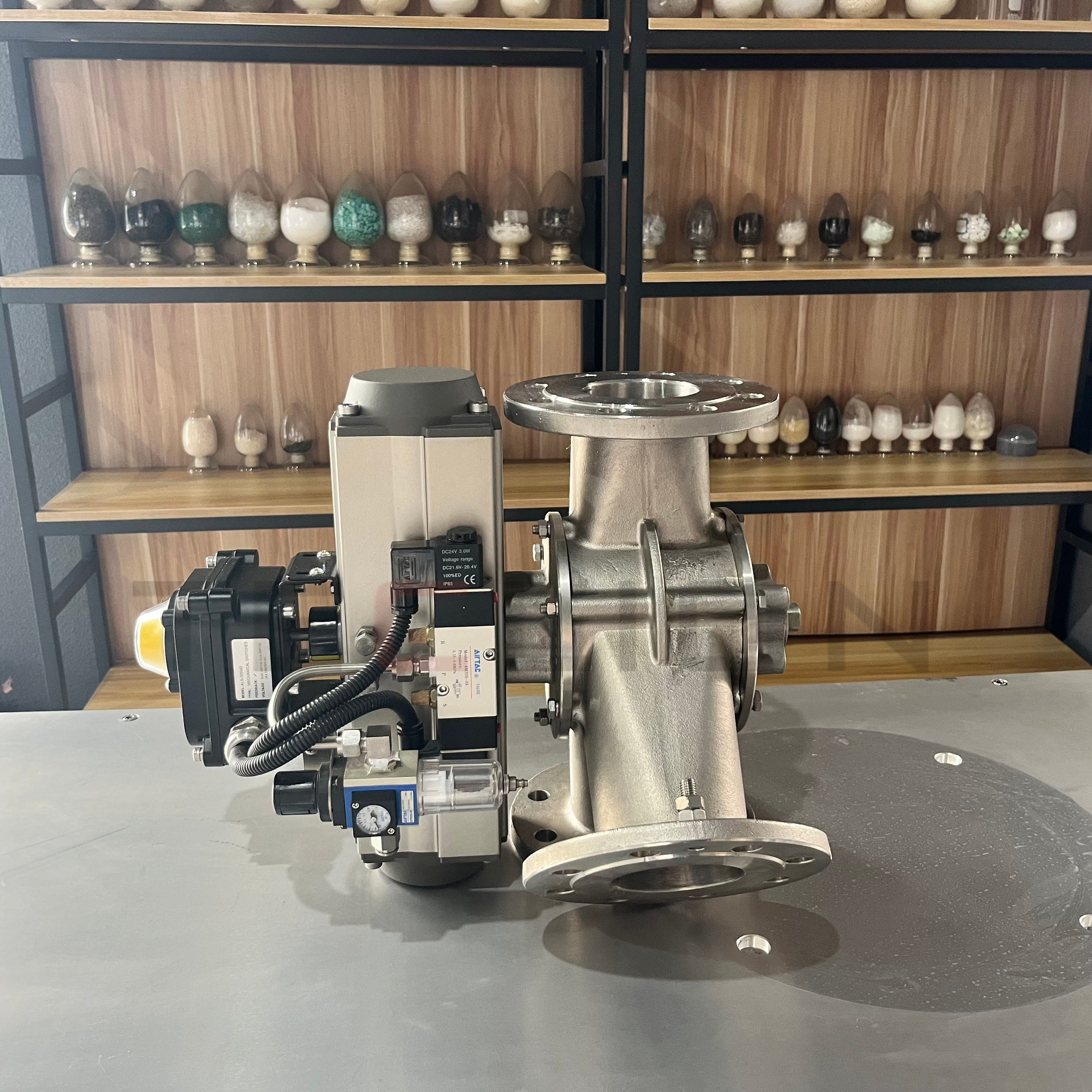

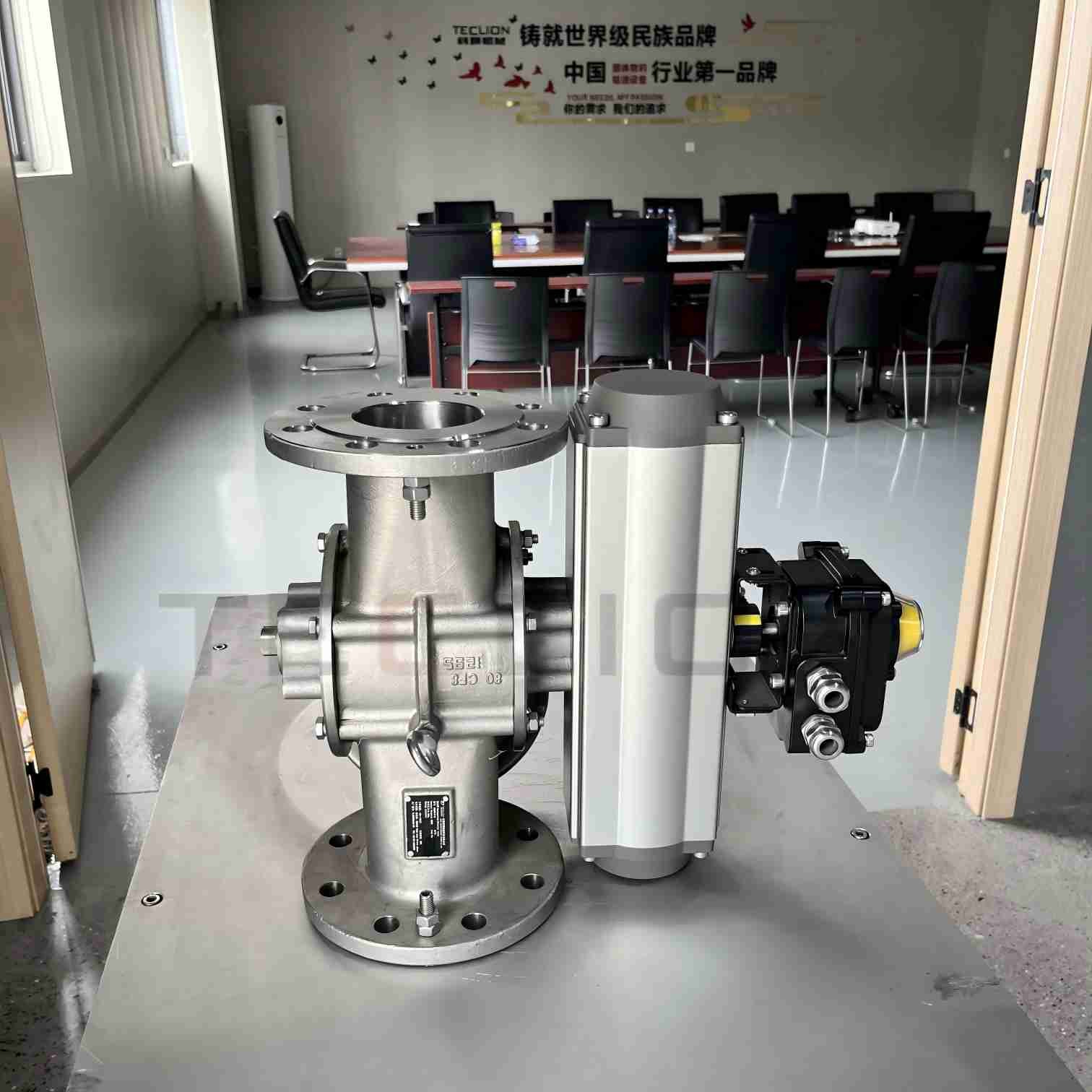

    Product pictures:

    Y Shaped Three Way Diverter Valve Gate For Material Handling SystemY Shaped Three Way Diverter Valve Gate For Material Handling SystemY Shaped Three Way Diverter Valve Gate For Material Handling System
