    Hygiene High Temperature Rotary Valve Industrial Airlock For Powder Metering

    Ask Lasest Price
    Brand Name : TECLION
    Model Number : RDP80
    Certification : CE
    Price : Get the Best Price
    Payment Terms : T/T
    Supply Ability : Usually every one sets for 30 days
    Delivery Time : 25 working days
    • Product Details
    • Company Profile

    Hygiene High Temperature Rotary Valve Industrial Airlock For Powder Metering

    Hygiene Grade Stainless Steel Airlock Valve For Powder Metering Discharge


    Product Description:

    Sanitary Airlock valves are specifically used for measuring and conveying powder materials. The parts of the valve body that come into contact with the materials are polished and degreased to ensure a clean and hygienic conveying environment. According to the material characteristics of the customer, it is possible to choose configurations such as spraying insulating ceramics, adding scraping blades, and quick disassembly and cleaning. The temperature range for use is less than 120 degrees Celsius, and the applicable pressure does not exceed 1 barg.


    Product Features:

    1)Clamp connection is optional

    2)Internal and external polishing 400#

    3)Reserved gas seal interface

    4)Optional to spray ceramic

    5)External bearings equipped with protective sealing rings

    6)Can provided CE and EAC certification


    Product Parameters:

    NoItemNote
    1Valve typeRotary valve
    2Size3 inches
    3Height203 mm
    4TemperatureNo more than 120 degrees
    5FlangePN 6 or Clamp flange ISO/BPE/3A
    6Rotor volume0.25 Litre
    7ConfigurationOptional scraper blade
    8Weight10kg (Excluding driver)

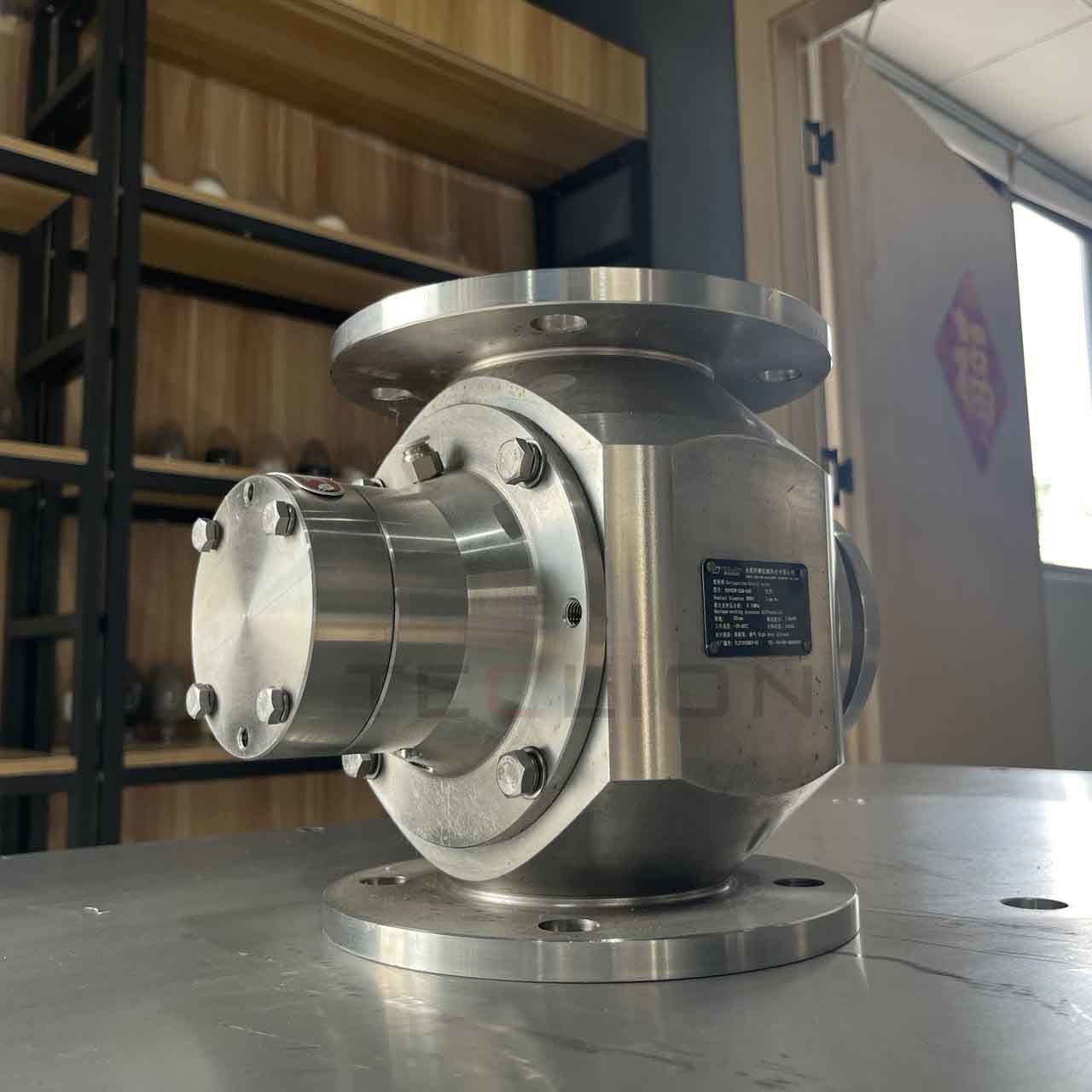

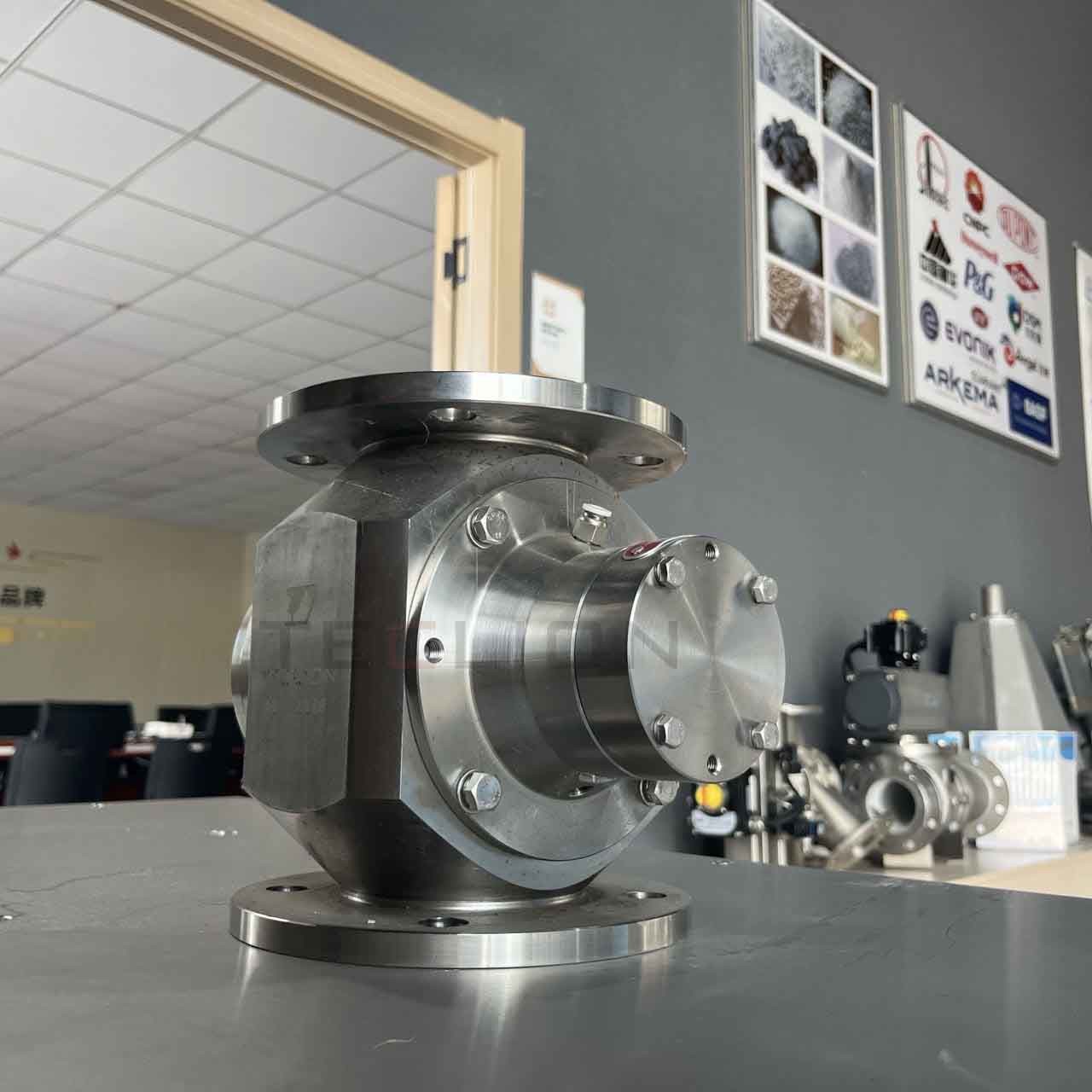

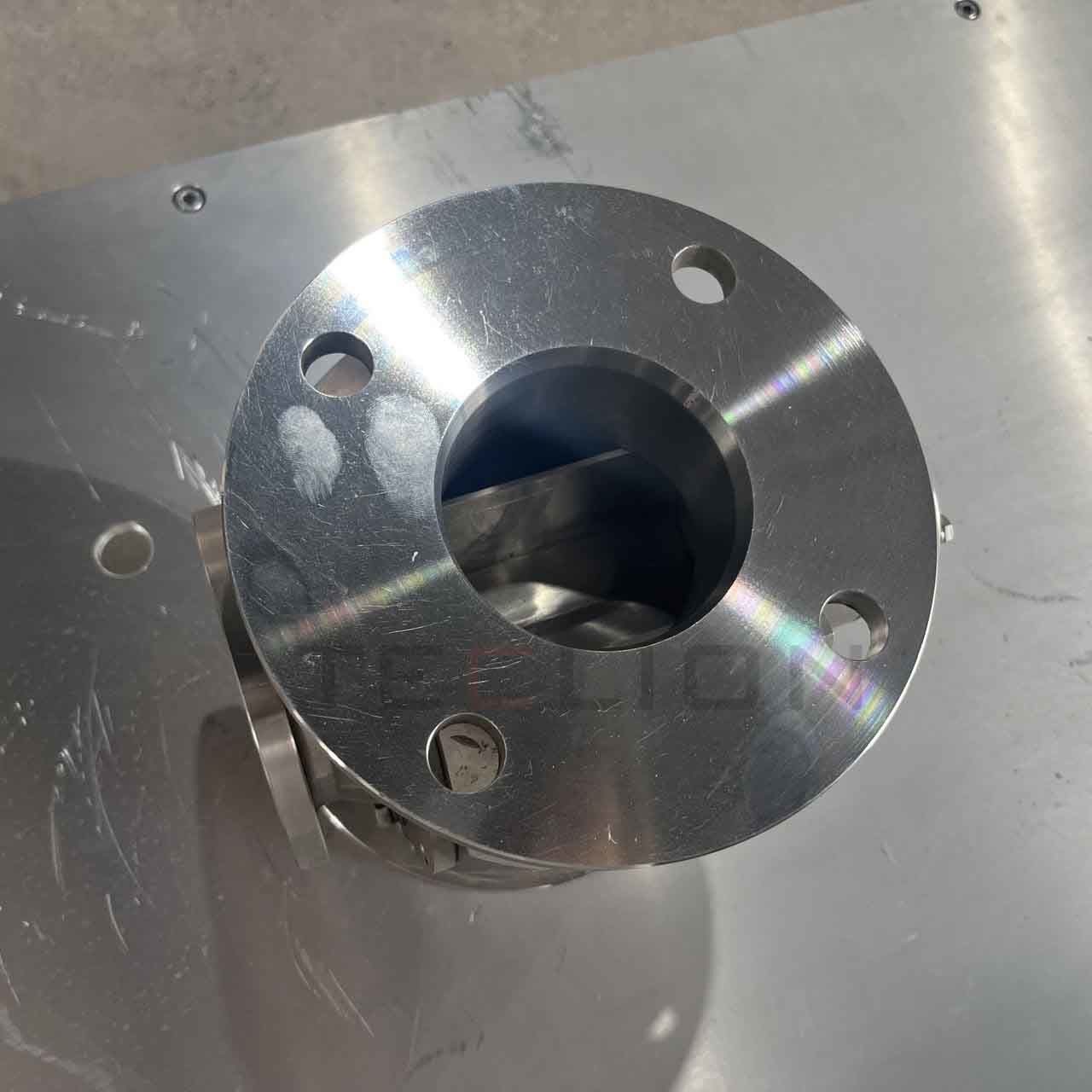

    Product Pictures:

    Hygiene High Temperature Rotary Valve Industrial Airlock For Powder MeteringHygiene High Temperature Rotary Valve Industrial Airlock For Powder MeteringHygiene High Temperature Rotary Valve Industrial Airlock For Powder MeteringHygiene High Temperature Rotary Valve Industrial Airlock For Powder MeteringHygiene High Temperature Rotary Valve Industrial Airlock For Powder Metering
